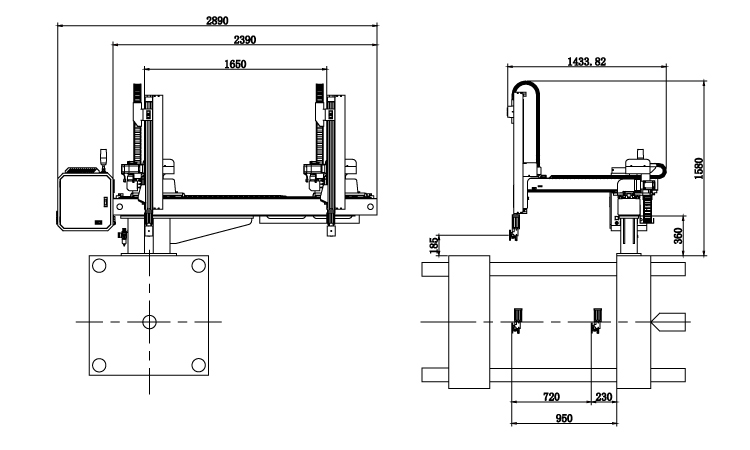

The Installation Dimension of SWITEK High Speed 3 Axis Servo Injection Robot SW7112DS

Introduction: About SWITEK 3 Axis Servo Injection Robot SW7112DS

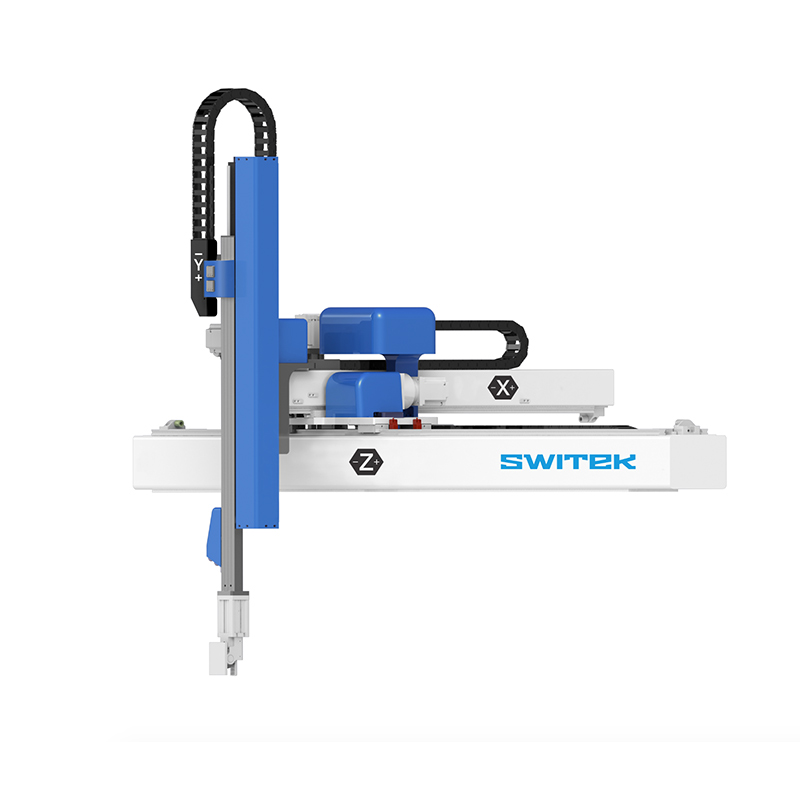

SW7112DS is a three axis servo high speed injection robot put on market by GuangDong SWITEK Technology Co., Ltd. by the end of 2019 designed for the high speed injeciton automation solution such as snack box injection etc. With kick back design and a payload up to 5kg, it actually a multi-functional robot which could be:

>> The high speed picking and stacking robot for thin-wall containers injection

>>The core robot in a top entry IML Solutions

>>The core robot in a cutlery auto-packing system

And also other injection molding automation system which is demanding the speed and stability of an injection robot.

Some Tips About How to Choose a Right Robot for Your Automation System:

Picking: To ensure that the robot has sufficient arm length to reach the mold center of the injection molding machine to pick the products.

Take out: Ensure that it's possible to be picked out by a robot (Mold structure and product shape).

Put Down: Ensure that the robot can put the products on the conveyor as requested ( Depend on the height of the safe door and the size of the product).

Payload: Ensure that the robot arm has sufficient loading capacity to pick the product (Depends on the weight of the product).

Cycle time: Ensure that the robot will move fast enough to catch up the injection cycle of the injection molding machine.

Arms: For standard mold a single arm robot would be perfect, while dual arms robot for three plates mold.

Extra Servo Motor: 4/5 Axis servo robot could be taken into consideration while there's a special demand of the moving speed, repeat precision etc.

EOAT: The custom made EOAT such as cooling, runner cutting, in mold insertion etc. will help to finish complex injecdtion process.

Why is SWITEK Compectitive Compared to Other Robot Manufacturer In China？

Quality: With ISO9001:2015 & CE Certified,  SWITEK has the capacity to ensure the quality of each robot and automation system delivered.

Innovation: National High Technical Enterprice since 2013, 5 patents of innovation, 65 patents of utility, DongGuang Industrial Robot R&D Center, 5 Software Copy Right and 4 Certificates of GuangDong Province High Tech Products well proofed the R&D capacity of SWITEK.

Service: With more than 20 after sales to provide you with online and infield technical support, SWITEK will promise a success start up of each robot right after its delivery.

Credit: Contract and credit unit of GuangDong Province since 2013

Injection Automation Application:

1. SWITEK 2 Cavities Pet BowlTop Entry IML Solutions

2. SWITEK 24 Cavities Folded SpoonChain Packing Injection Solution

3. SWITEK 3 Axis Servo Injection Robot Disposable Spoon Multi-pieces Plastic Bag Auto-packing Solution

4. SWITEK 3 Axis Servo Injection Robot 4 Cavities 80mm Beverage Cups CapsPicking Solution

5. SWITEK Dual 3 Axis Servo Injection Robot 32 Cavities Cutlery Gift BoxPacking Automation Solution

6. SWITEK 1 Cavity Beach BucketTop Entry IML Solutions
