Injection Robot, 3 Axis Servo Injection Robot for IMM 150~320T, Order Now
Item No:SW6710DS
Recommended IMM:150-320T
Payload:6kg
Cycle Time:7s
Collection
Payments:
  • Product details
  • Packaging & Shipping

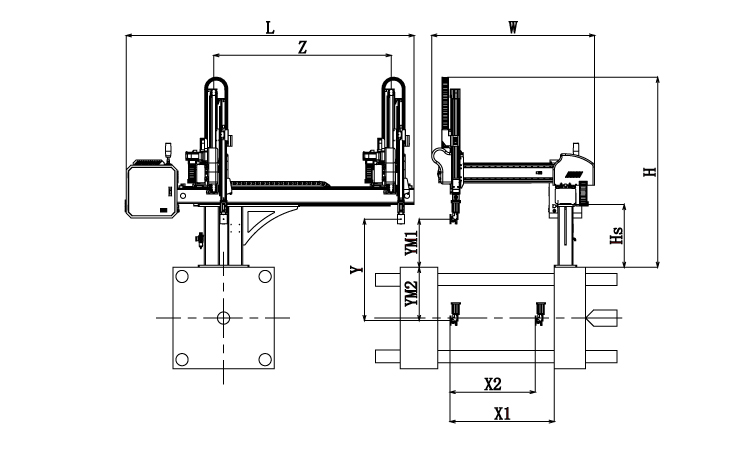

Installation Dimension of SWITEK 3 Axis Servo Injection Robot Telescopic Arm for Injection Molding Machine 150~320T SW6710DS


injection Robot


X1 X2 Y YM1 YM2 W L Z H Hs
1030 840 1000 475 525 1690 2850 1750 1920 620

Introduction: About SWITEK 3 Axis Serov Injection Robot Telescopic Arm SW6710DS for Injection Molding Machine 150~320T


SWITEK 3 Axis Servo Telescopic Arm injection robot SW6710DS is a kick forward designed robot with  a payload up to 8kg. With it's excellent repeat precision and stability, it's the core injection robot for LESSO pipe fittings in mold insertion injection automation solution.


Key Components for SWITEK 3 Axis Servo Telescopic Arm Injection Robot SW6712DS

ROBOT COMPONENTS


Some Tips About How to Choose a Right Robot for Your Automation System:


Picking:To ensure that the robot has sufficient arm length to reach the mold center of the injection molding machine to pick the products.

Take out:Ensure that it's possible to be picked out by a robot (Mold structure and product shape).

Put Down:Ensure that the robot can put the products on the conveyor as requested ( Depend on the height of the safe door and the size of the product).

Payload:Ensure that the robot arm has sufficient loading capacity to pick the product (Depends on the weight of the product).

Cycle time:Ensure that the robot will move fast enough to catch up the injection cycle of the injection molding machine.

Arms:For standard mold a single arm robot would be perfect, while dual arms robot for three plates mold.

Extra Servo Motor:4/5 Axis servo robot could be taken into consideration while there's a special demand of the moving speed, repeat precision etc.

EOAT:The custom made EOAT such as cooling, runner cutting, in mold insertion etc. will help to finish complex injecdtion process.

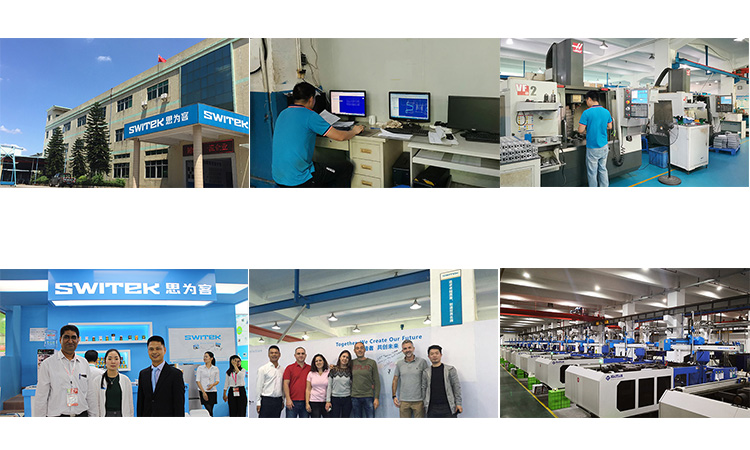

ABOUT SWITEK

Why is SWITEK Compectitive Compared to Other Robot Manufacturer In China?


Quality:With ISO9001:2015 & CE Certified,  SWITEK has the capacity to ensure the quality of each robot and automation system delivered.

Innovation:National High Technical Enterprice since 2013, 5 patents of innovation, 65 patents of utility, DongGuang Industrial Robot R&D Center, 5 Software Copy Right and 4 Certificates of GuangDong Province High Tech Products well proofed the R&D capacity of SWITEK.

Service:With more than 20 after sales to provide you with online and infield technical support, SWITEK will promise a success start up of each robot right after its delivery.

Credit:Contract and credit unit of GuangDong Province since 2013


ROBOT Certificates


Viisting GuangDong SWITEK Technology Co., Ltd. Online




Hot Tags: Injection Robot, Injection Automation, 3 Axis Servo Injection Robot

Subject :Injection Robot, 3 Axis Servo Injection Robot for IMM 150~320T, Order Now

Send us the detailed information of your injection molding machine, mould and product to get an instant quotation.
