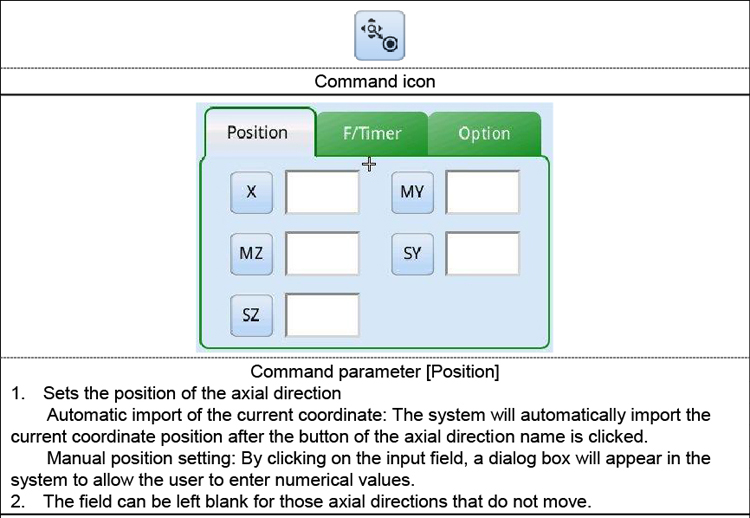

1. Sets the position of the axial direction
Automatic import of the current coordinate: The system will automatically import the current coordinate position after the button of the axial direction name is clicked.
Manual position setting: By clicking on the input field, a dialog box will appear in the system to allow the user to enter numerical values.
2. The field can be left blank for those axial directions that do not move.

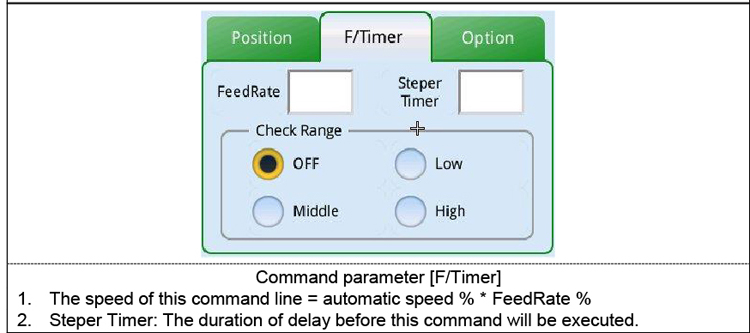

1. The speed of this command line = automatic speed $ * FeedRate %
2. Steper Timer: The duration of delay before this command will be executed.

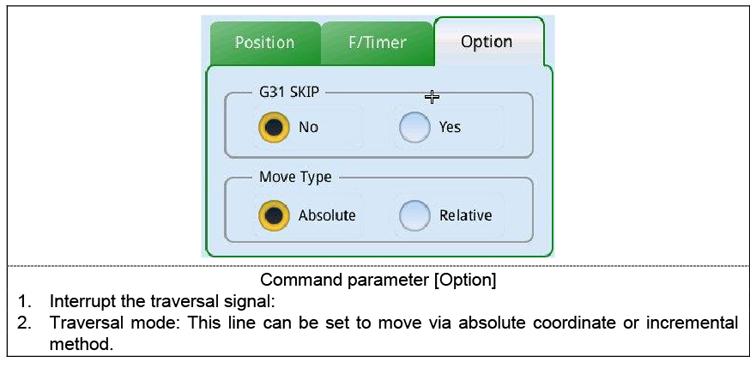

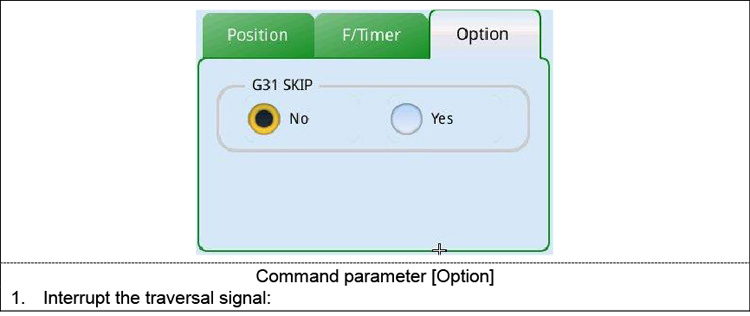

1. Interrupt the traversal signal:
2. Traversal mode: This line can be set to move via absolute coordinate or incremental method.

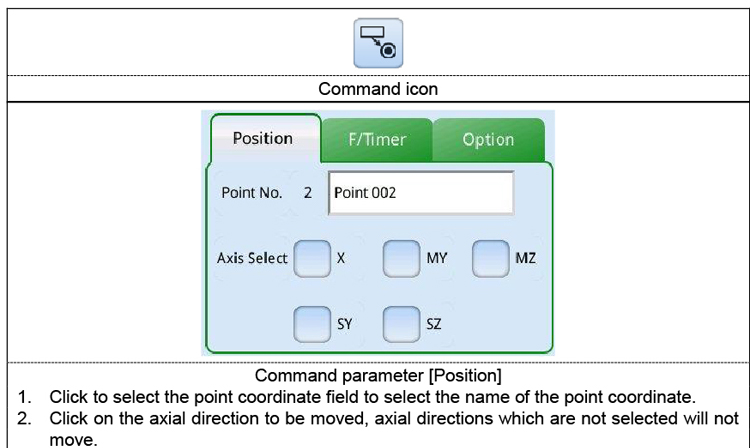

1. Click to select the point coordinate field to select the name of the point coordinate.
2. Click on the axial direction to be moved, axial directions which are not selected will not move.
1. The speed of this command line=automatic speed % * FeedRate %
2. Steper Timer: The duration of delay before this command will be executed.

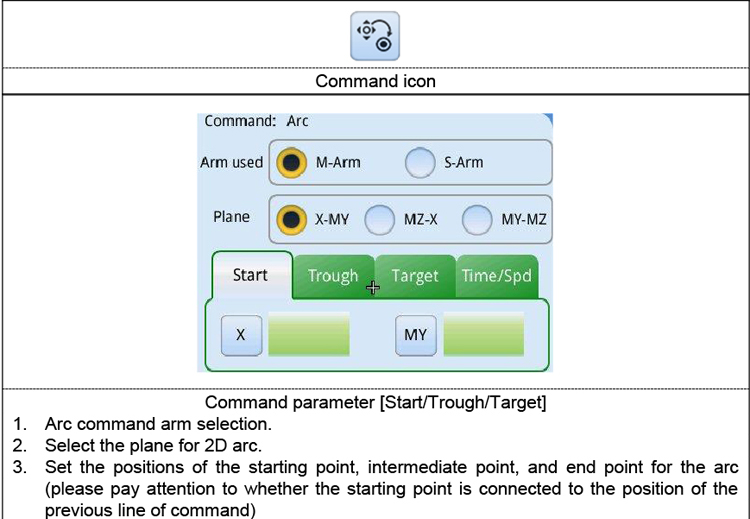

1. Arc command arm selection.
2. Select the plane for 2D arc.
3. Set the positions of the starting point, intermediate point, and end point for the arc (please pay attention to whether the starting point is connected to the position of the previous line of command)

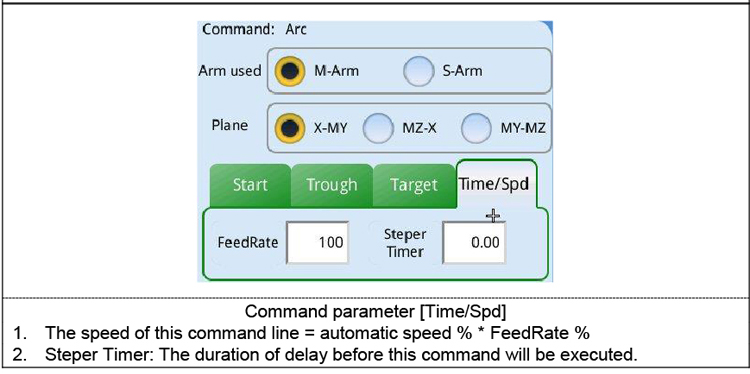

1. The speed of this command line="automatic speed % * FeedRate %"
2. Steper Timer: The duration of delay before this command will be executed.
