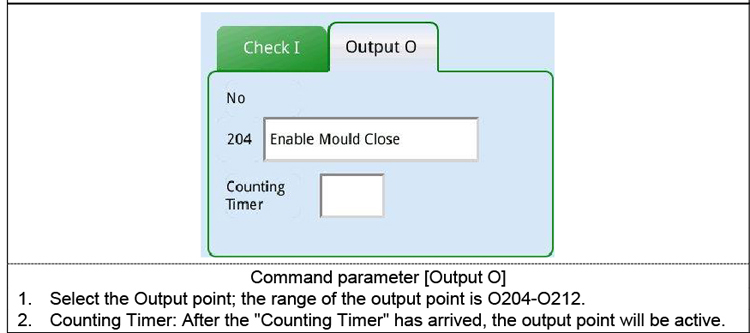

1. Select the Output point; the range of the output point is O204-O212.
2. Counting Timer: After the "Counting Timer" has arrived, the output point will be active.

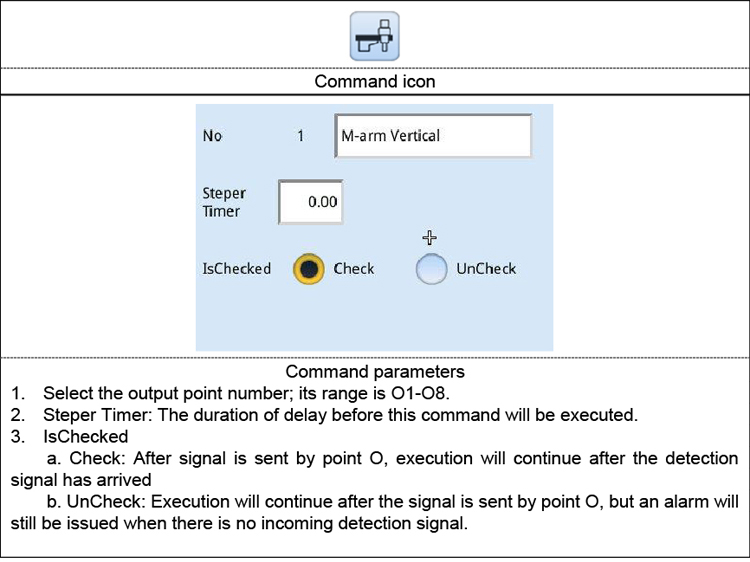

1. Select the output point number; its range is O1-O8.
2. Steper Timer: The duration of delay before this command will be executed.
3. IsChecked
a. Check: After signal is sent by point O, execution will continue after the detection signal has arrived
b. UnCheck: Execution will continue after the signal is sent by point O, but an alarm will still be issued when there is no incoming detection signal.

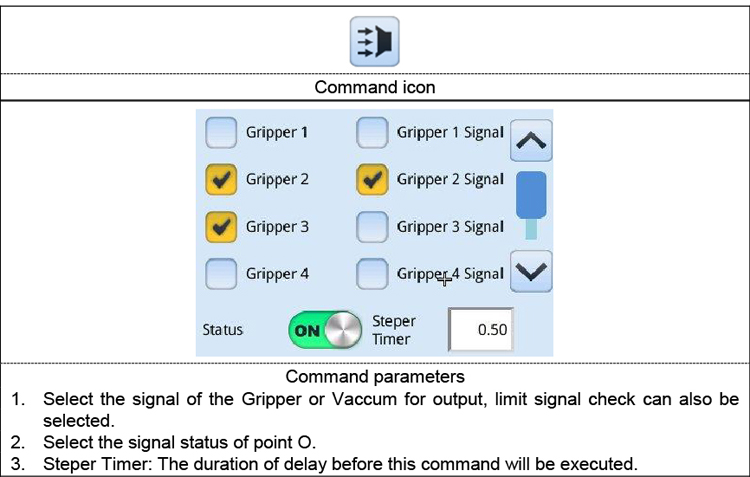

1. Select the signal of the Gripper or Vaccum for output, limit signal check can also be selected.
2. Select the signal status of point O.
3. Steper Timer: The duration of delay before this command will be executed.

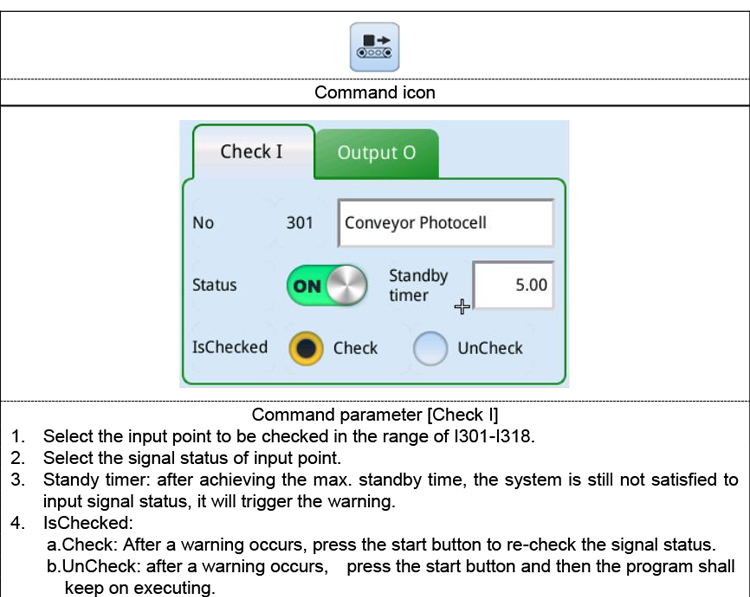

1. Select the input point to be checked in the range of I301-I318.
2. Select the signal status of input point.
3. Standby Timer: after achieving the max. standby time, the system is still not satisifed to input signal status, it will trigger the warning.
4. IsChecked:
a. Check: After a warning occurs, press the start button to re-check the signal status.
b. UnCheck: After a warning occus, press the start button and then the program shall keep on executing.

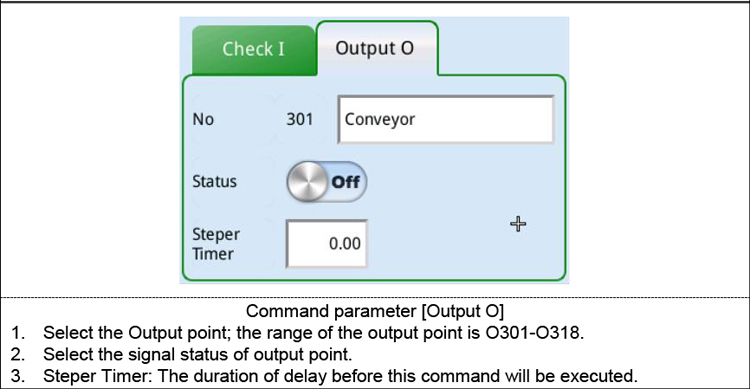

1. Select the Output point; the range of the output point is O301-O318.
2. Select the signal status of output point.
3. Steper Timer: The duration of delay before this command will be executed.
