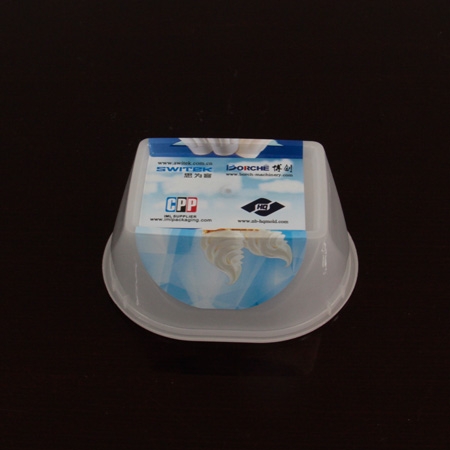

Rectangular 3 Faces Rectangular IML Ice Cream Cups
Ice Cream Cups IML Solution
Product Origin:China
Brand:SWITEK
Item No.:3 Faces IML Cups
Shipping Port:SHENZHEN
Lead Time:75Days
Advantages of SWITEK Side Entry 4 Cavities Rectangular Ice Cream Cups 3 Faces IML Solution
1. Modular design, easy for upgrading: The magazine, the stacking unit and the mandral of the side entry 4 cavities rectangular ice cream cups 3 face IML system are modular designed and is convenient to be replaced for IML production of different products.
2. High efficiency: SWITEK side entry 4 cavities rectangular ice cream cups 3 faces IML system will finish the label input, cups picking and stacking in around 5.5~6 s. It's an efficient side entry 3 faces IML solution.
3. Easy maintenance: All the key components such as servo motor, slider, drag etc. are world renowned brand and available around you for replacement.
Measurement of the rectangular ice cream cups
The Layout of the mold
The specification of the mold
| MODEL | |
| Shot Weight (PS) | |
| Clamping Force (kN) | |
| Opening Stroke (mm) | |
| Platen Size (mm) | |
| Space Between Tie-bars | |
| Mold Thickness (Min.-Max.) | |
| Dimensions (L x W x H) |
The specification of the injection molding machine
| MODEL | |
| Cavity | |
| Mould Base | |
| Cavity & Core | |
| Guarantee Mould Life (Short) | |
| Hardening Process | |
| Injection Way |
The specification of the IML System
| MODEL | SW830 |
| Recommended IMM (Ton) | 200~300 |
| Traverse Stroke(mm) | 1700 |
| Vertical Stroke(mm) | 500 |
| Crosswise Stroke(mm) | 90/90 |
| Traverse Drive | 4 Axial AC servo |
| Take Out Time(Sec) | / |
| Dry Cycle Time(Sec) | / |
| Power(KVA)/(Phs) | / |
| Working Pressure(kgf/cm^2) | 5～7 |
| Air Consumption(NL/cycle) | 1.8 |
| Max Load (kg) | 15 |
| Net Weight(kg) | / |
| Gross Weight(kg) | / |
| Size (L x W x H) mm | 2400x1700x1770 |
